Product Features

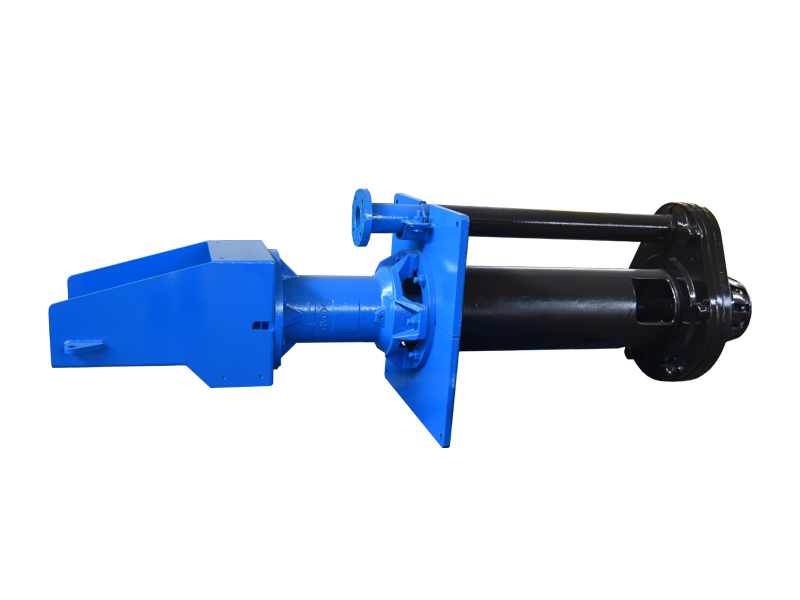

Structure type: It is a vertical centrifugal slurry pump
Transport materials: It’s suitable for conveying abrasive or corrosive slag slurry.
Applications：It is widely used in metallurgical, mining, coal, electric power, building materials, chemical and other industrial departments. The submerged slurry pump is divided into ZV type and ZVR type, with the same structure.
ZV type submerged slurry pump, the flow passage parts and shaft are made of wear-resistant metal, which is suitable for conveying abrasive slurry.

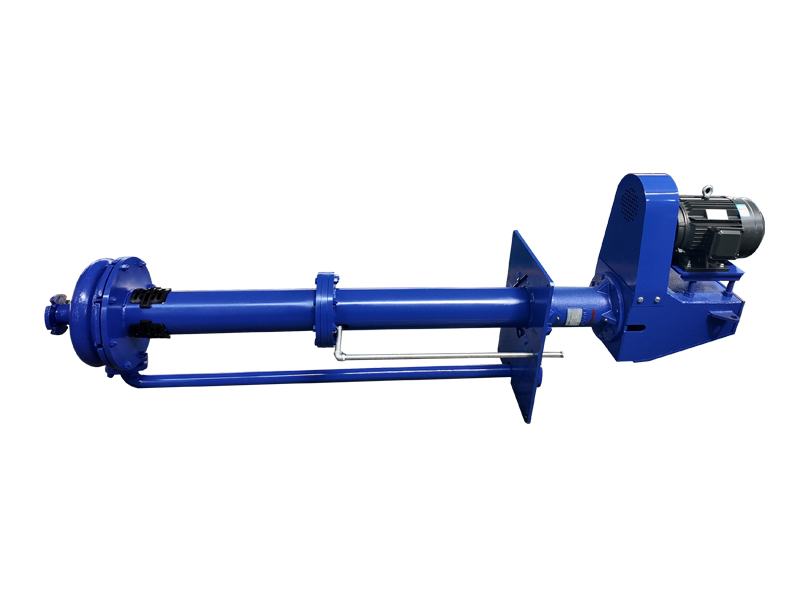

The letter L contained in the model is the extended shaft series submerged slurry pump, which can be applied to the working condition under deep water.
Transmission mode: Direct drive or belt drive can be adopted, and the sheaves can be easily replaced.

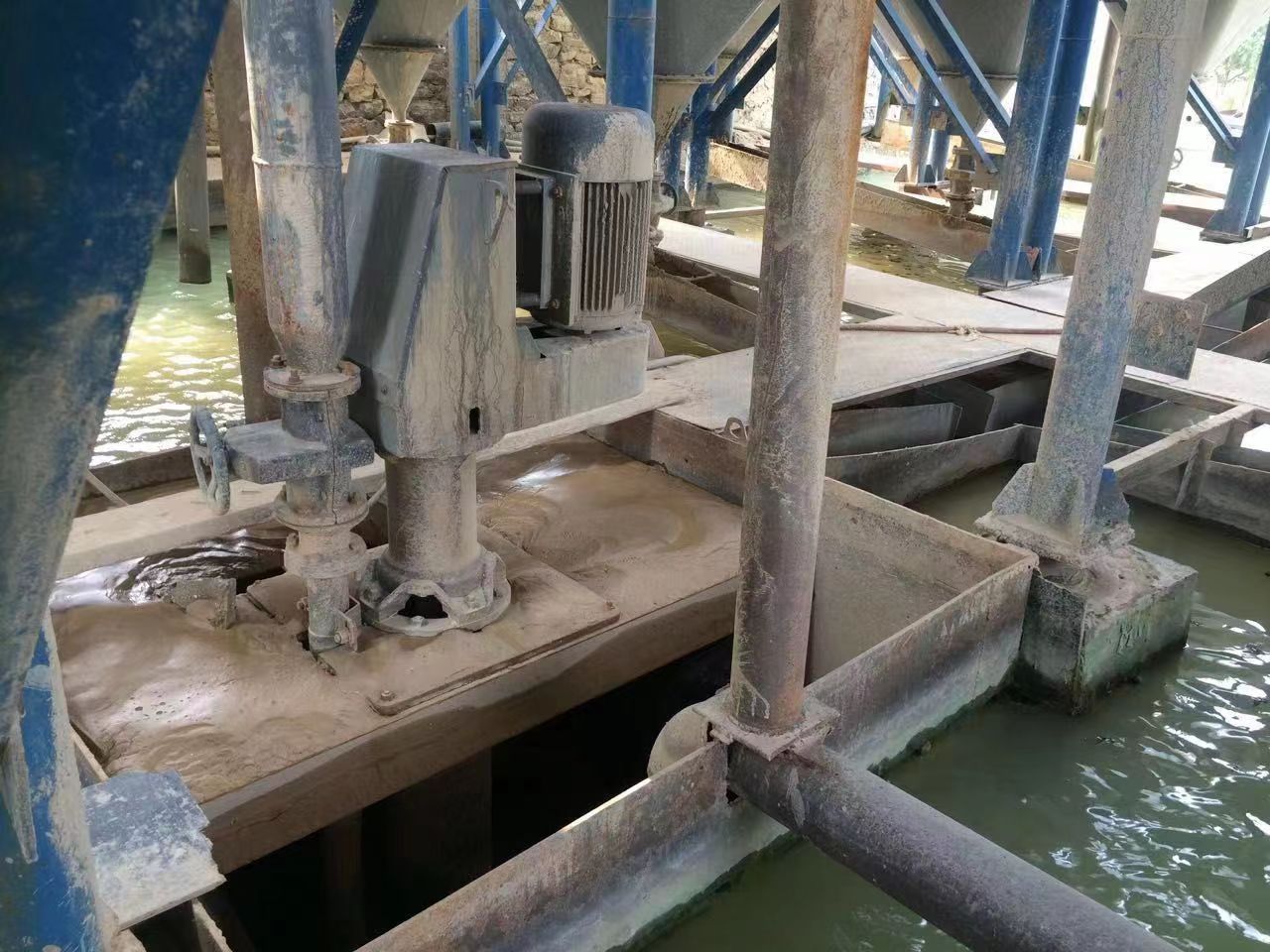

Installation and usage: It can work in the pool or pit without any shaft seal or shaft seal water.

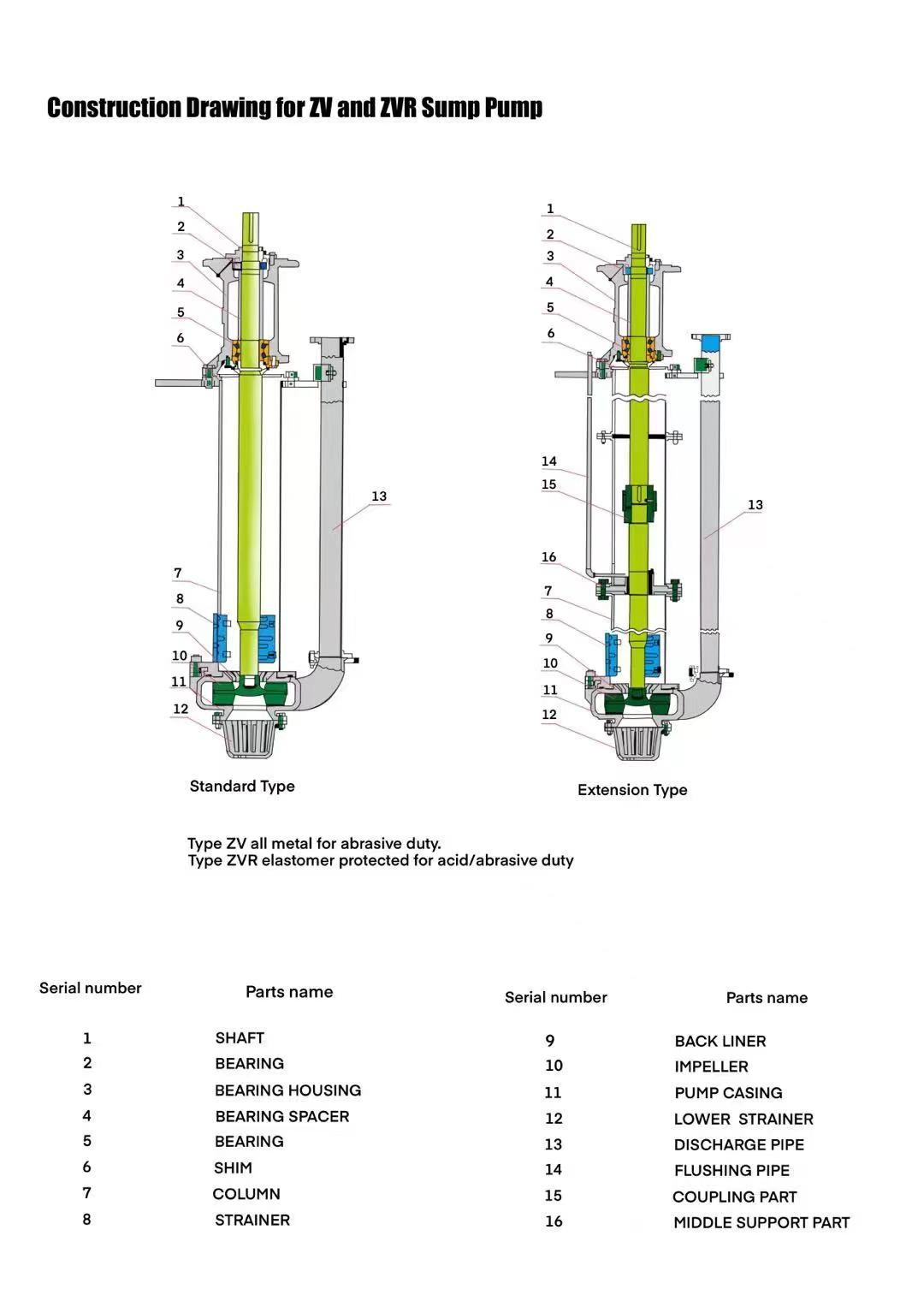

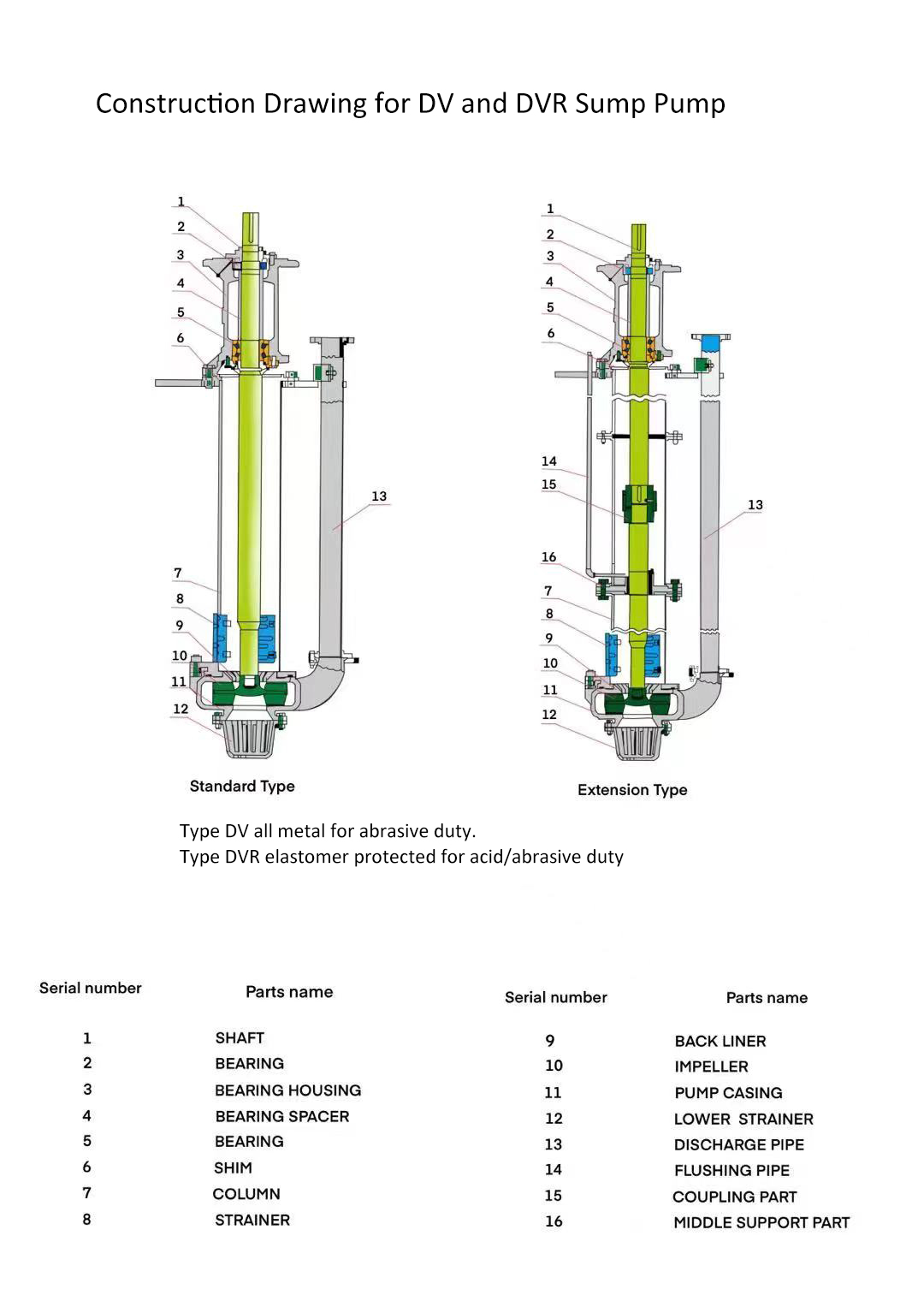

Anatomical drawing:
Material Construction:
| Description | Standard Material | Optional Material |
| Impeller | A05 | A33, A49 |
| Casing | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Shaft | Carbon Steel | SUS304, SUS316(L) |
| Discharge Pipe | 20# Mild Steel | SUS304, SUS316(L) |
| Column | 20# Mild Steel | SUS304, SUS316(L) |
