Structural form:

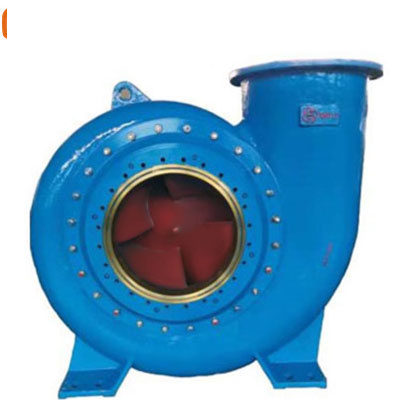

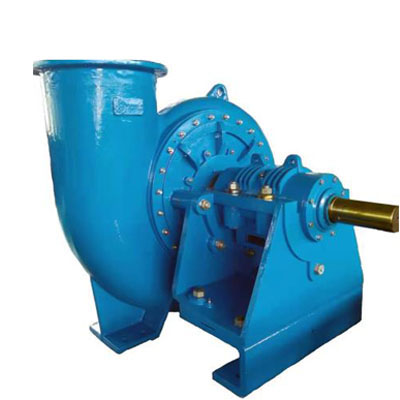

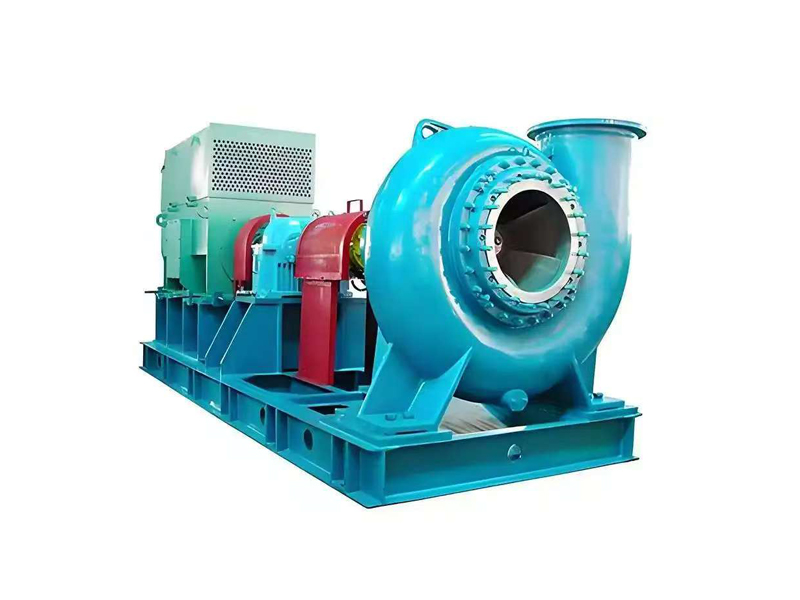

DT series desulfurization pump is a cantilever horizontal centrifugal pump with axial suction, single-stage single-suction, and single pump casing structure.
Conveying slurry:
Suitable for limestone, gypsum wet desulfurization, for conveying limestone or gypsum slurry. The chloride ion content of the slurry allowed to be transported is up to 20000ppm, the pH value is between 4.5 and 12, the slurry temperature is ≤65°C, and the slurry weight concentration Cw is up to 60%.
Application site:
The pump is specially designed for the desulfurization system of the power plant. Mainly used in the desulfurization main circulation system and peripheral circulation system of thermal power plants. It can also be used to transport limestone or gypsum slurries in desulfurization systems in industries such as aluminum and oil refining.
Material of overcurrent parts: The overcurrent parts are made of special materials GLH-5 and GLH-6 specially used for desulfurization conditions.
Transmission form: DCZ direct drive,
Shaft seal form: mechanical seal.
Installation and application: The pump outlet is directed vertically upwards.
Features:
In terms of hydraulic design and structural design, this series of pumps integrates the advantages of similar products at home and abroad and innovates them. It has the advantages of high efficiency and energy saving, anti-wear and corrosion resistance, low vibration, low noise, reliable operation and long service life. .
Parameter range:
Pump outlet: 100mm-1000mm
Flow: 41m³/h～18300m³/h
Head: 5-76m
