● Material: Chrome Alloy A05
● Impeller: 5-Vane Closed
● Use: Coal Washery Plant Slurry Pump
● Stage: Single Stage
● Lubrication: Oil
● Speed: Fixed Rotation
● Model: 100SGB
● Weight: 3000kgs
Introduction:
SGB series slurry pump is a horizontal, single stage, single suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components can exchange SGB and SGBP type slurry pump the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopt open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.
When necessary, cooling water.
Shaft seal type SGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.

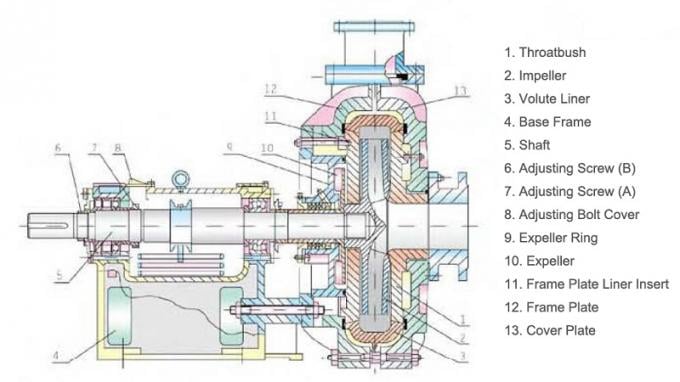

Construction of SGB Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
